“ Timeless design, modern elegance and outstanding technology “

The BlackRaven is the consistent advancement of the legendary former Ayon ceramic loudspeaker series (Seagull, Hawk, Falcon, and Eagle) anno 2003 – 2010. Only 9 years later with the new ceramic chassis technology we could develop further the loudspeaker decisively mounting ceramic chassis. Implementing specially produced special impedance bass-chassis-coils we could draw the impedance up and design the acoustic 6dB-cross-over much simpler. Also, the improved "almost not damped" elliptical Ayon instrument plywood cabinet (with its unequalled all-around radiating characteristics – by means of the elongated elliptical front plate the sound being carried into the room far and quasi "all around") further contributes to the very easy operation of amplifiers, particularly the lovers of low-powered solid-state and tube amplifiers could hardly avoid this loudspeaker. The BlackRaven distinguishes itself by a very three-dimensional, sophisticated, transparent, light-footed, and spatial reproduction, with the bass playing dynamically, deep, and powerful. The BlackRaven is an audiophile universal genius, incarnating all attributes of an uncompromising reproduction at the top-level.

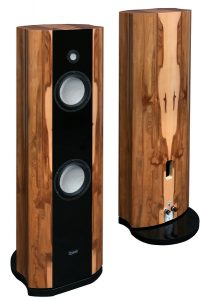

Ayon BlackRaven front-rear
Ayon BlackRaven Black

Specifications

SpeakerAyon BlackRaven
System1/2-way
Airflow Damping System (ADS)
Cabinet DesignElliptic
Cabinet MaterialResonance optimized instrument plywood
Driver Complement1 x 1.2" Cell-Ceramic Tweeter
1 x 6.7" Ceramic Woofer/Mid
1 x 6.7" Ceramic Woofer
Crossover frequencies1000Hz / 2300Hz
Impedance4 Ohm
Sensitivity (1W / 1m)92 dB
Frequency Response35Hz -30 kHz / -3 db
TerminalWBT NextGen
Internal WireCustom made
Bass BoostSwitchable
Dimensions (HxWxD) each111x35x23 cm
Weight, each35 kg
Specifications subject to change without notice
